The iReliev 2400W is a standing full-body panel built around 480 LEDs across five wavelengths — three in the red band and two in near-infrared. At 53.9 inches tall it covers a standing adult from roughly shoulder to knee without repositioning.
About that 2400W number
Worth being straight about this, because it is the most misunderstood figure in the category.
2400W is the combined lamp rating of the LED array. The panel's actual rated power draw is 800W. Both figures come from the manufacturer and both are accurate — they measure different things. Lamp rating is the sum of what the diodes are rated at; rated power is what the unit pulls from the wall.
Most listings in this category publish the larger number and stop. We publish both, because the 800W is the one that tells you what the panel does on a circuit, and the difference between the two is where a lot of shopping confusion lives.
Irradiance, measured, at four distances
An irradiance figure without a measurement distance is close to meaningless — the same panel reads very differently at three inches and eighteen. iReliev supplied the full curve, so here it is.
| Distance | Irradiance |
|---|---|
| 3 in | 194 mW/cm² |
| 6 in | 175 mW/cm² |
| 12 in | 138 mW/cm² |
| 18 in | 109 mW/cm² |
These are the manufacturer's own measurements rather than an independent laboratory's. We publish the distance alongside every figure so you can compare like with like against any other panel you are considering.
Wavelengths
| 630 nm | Red |
| 660 nm | Red |
| 810 nm | Near infrared |
| 830 nm | Near infrared |
| 850 nm | Near infrared |
Red and near-infrared light differ in how far they travel into a surface. Near-infrared is invisible to the eye, so a panel running its NIR diodes can look dimmer than it is.

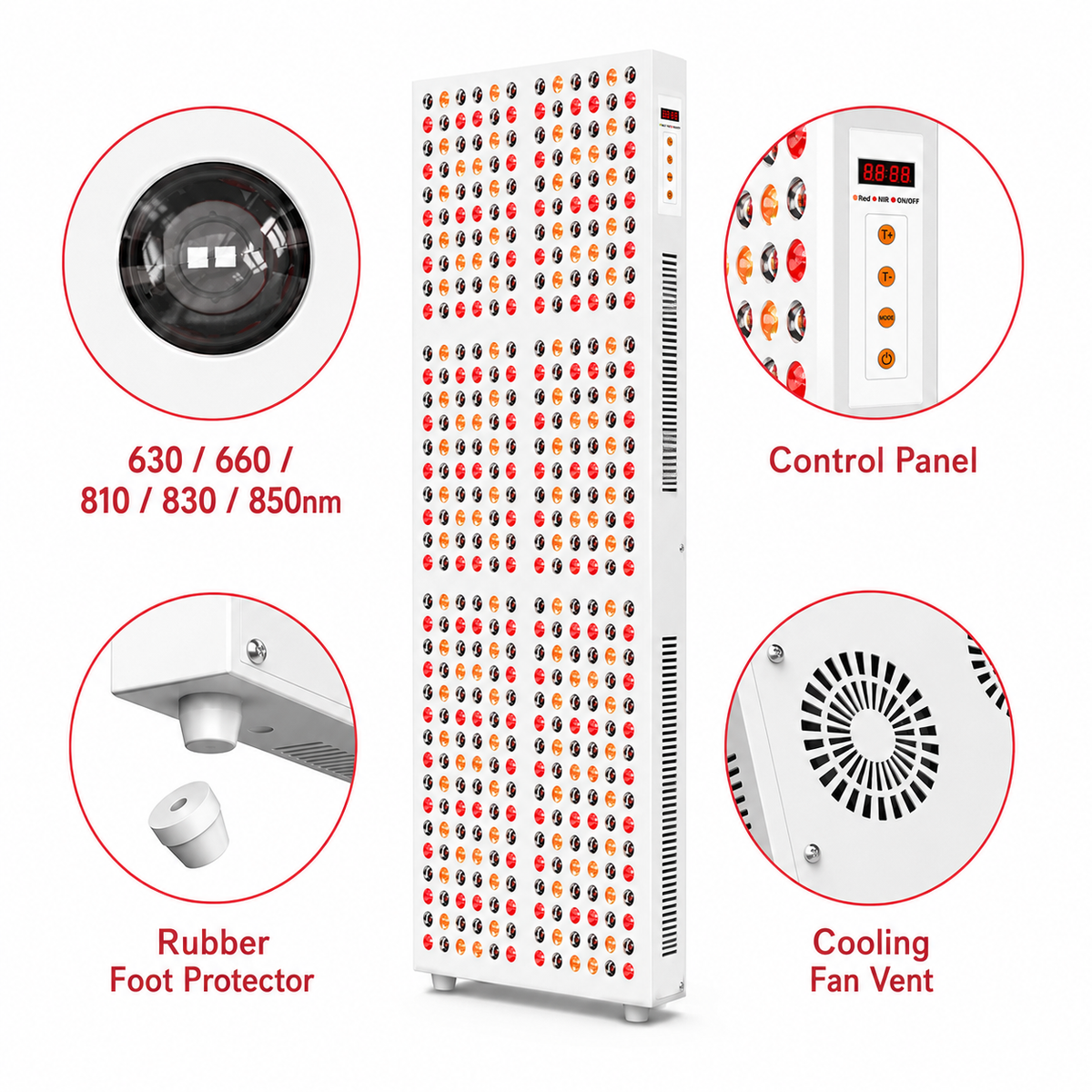

Specifications
| Model | RL-191288010 |
|---|---|
| LED quantity | 480 |
| Lamp power | 2400W combined LED rating |
| Rated power draw | 800W |
| Wavelengths | 630, 660, 810, 830, 850 nm |
| Dimensions | 53.9" H × 21.7" W × 7.5" D |
| Gross weight | 52.91 lb (24 kg) |
| Voltage | 110–240V |
| Configuration | Standing panel |
| Housing | Iron, white finish |
| Manufacturer | ExcelHealth Inc. (iReliev) |
On the published weight.
iReliev's own site lists 25 kg. The manufacturer confirmed to us in writing that the true figure is 24 kg and that the website rounds up. We publish 24 kg because that is the number a freight carrier will use.
Electrical
The panel accepts 110–240V and draws a rated 800W. On a standard North American 120V supply that is roughly 6.7 amps, so it runs on an ordinary household outlet without a dedicated circuit.
Plug it directly into a wall outlet rather than an extension cord or a light-duty power strip.
What's included
The panel, its stand, and eye protection — an eye mask and earplugs are listed in the manufacturer's contents.
Returns
30-day return window. The customer pays return shipping. Returns go to iReliev in Colleyville, Texas, quoted against your order number — contact us and we will set it up.
Questions before you buy
Call 866-427-8202 or email support@homemedspa.com. If you are comparing this against another panel and the two sets of numbers don't line up, tell us which panel and we'll walk through what's actually being compared — lamp rating against rated draw, and irradiance at whatever distance each one was measured at.
This product is intended for general wellness, relaxation and personal recovery routines. It is not a medical device and is not intended to diagnose, treat, cure or prevent any disease. Follow the manufacturer's instructions and consult a qualified healthcare professional when appropriate.
