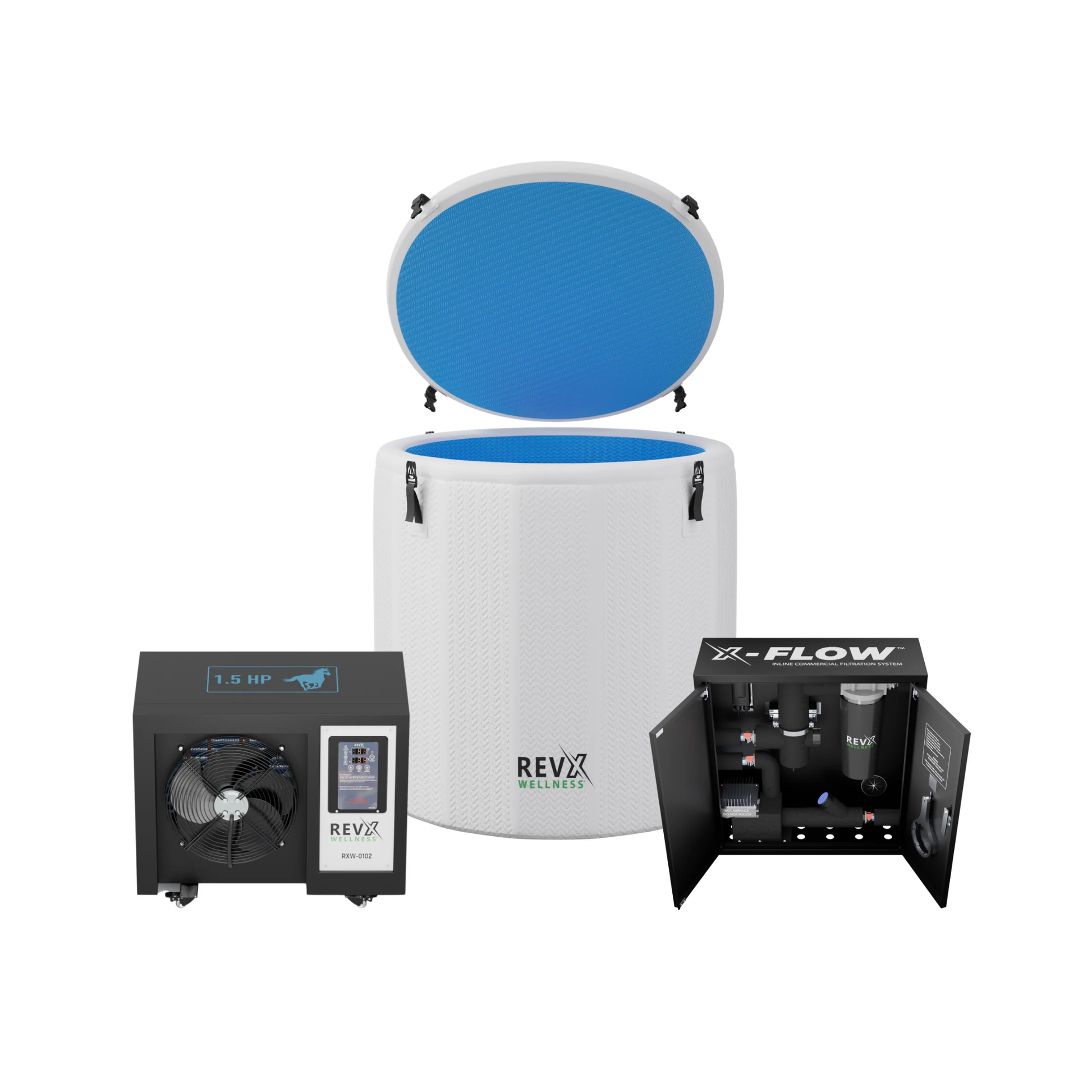

Get a complete, compact cold-plunge system with cooling and water care separated for easier service and long-term performance. The RevX Barrel Bundle includes an insulated inflatable barrel, a WiFi-enabled chiller, a dedicated X-Flow filtration system, insulated tubing, valves, a lid, and an air pump.
A Three-Part System Built Around Cold, Clean Water
Instead of combining every mechanical component inside one enclosure, RevX separates the chiller, filtration system, and plunge tub. This patent-pending arrangement is designed to let each component perform its specific job while making filters, pumps, hoses, and chillers more accessible for maintenance or future replacement.
The vertical barrel format fits users up to approximately 6'4" while using less floor length than a reclining plunge. Three-inch insulated drop-stitch walls help reduce heat gain, and the chiller can be selected in 1.0 HP, 1.5 HP, or 2.0 HP configurations.
Why You’ll Love It
- Complete bundle: Includes the barrel, lid, pump, chiller, filtration system, tubing, and valves.
- 34°F–104°F range: The industrial chiller supports both cooling and heating.
- Three chiller choices: Select 1.0 HP, 1.5 HP, or 2.0 HP based on climate, cooling speed, and electrical access.
- WiFi control: Current chiller options include connected controls.

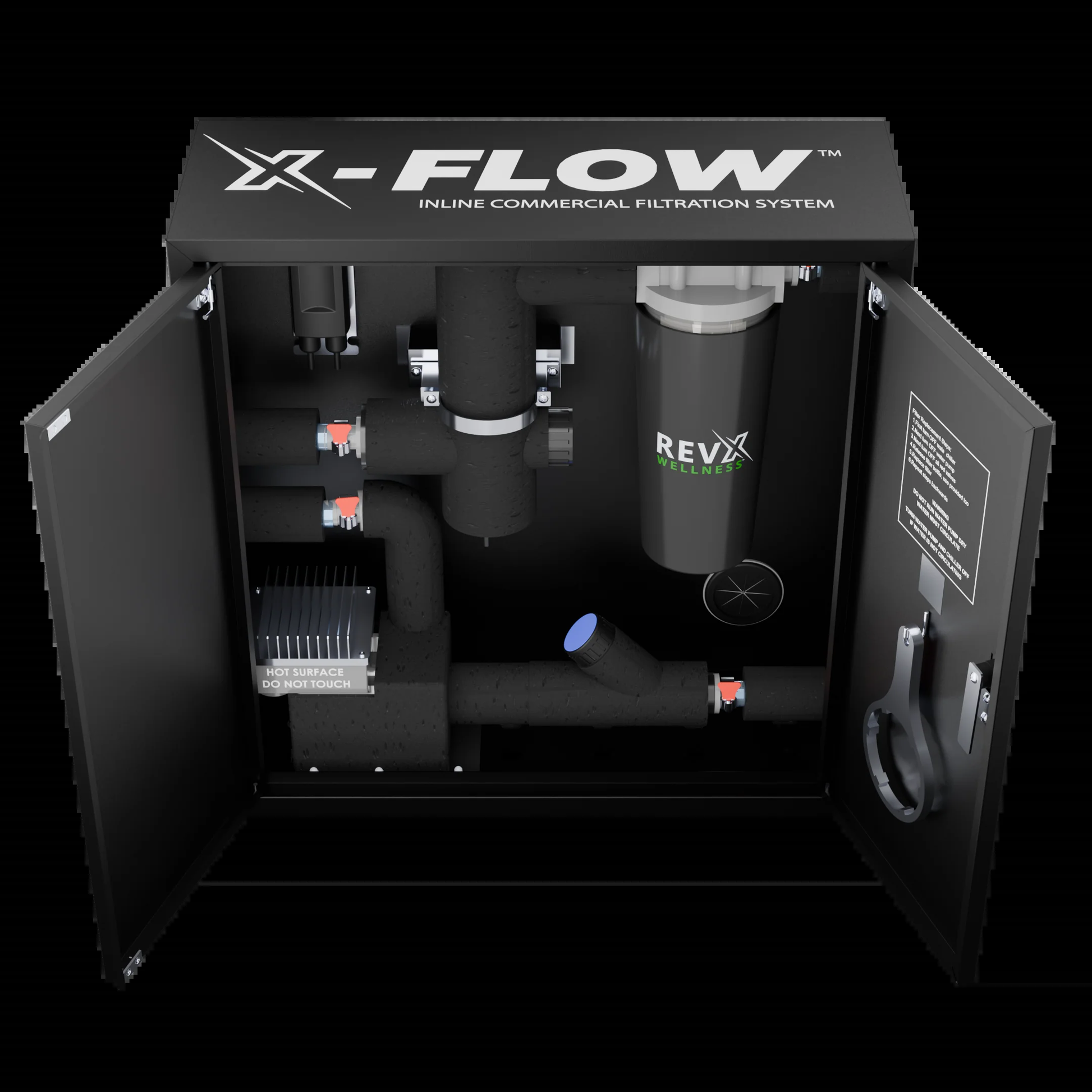

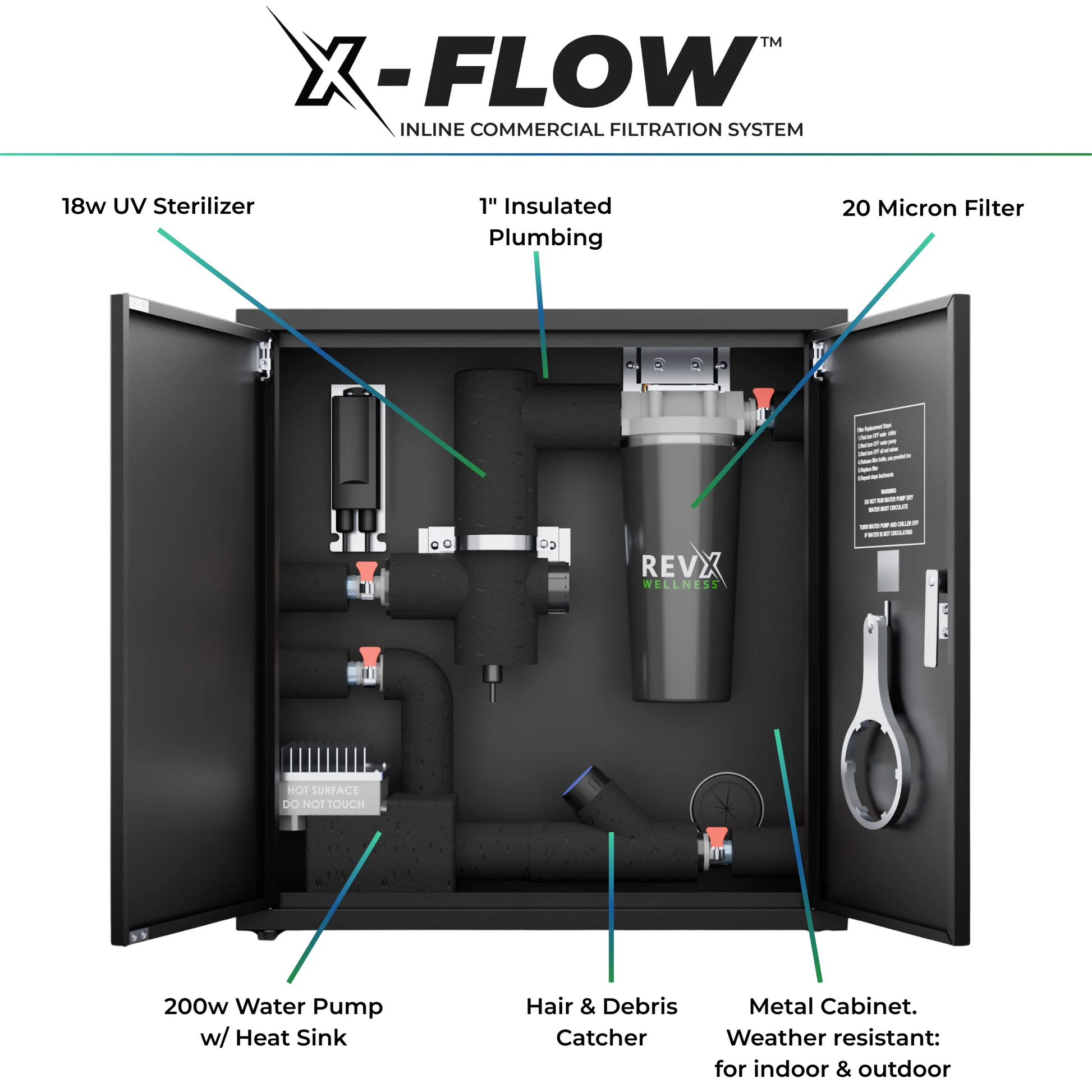

- Dedicated X-Flow filtration: Combines a 20-micron filter and UV sanitation in a separate stackable system.
- High-flow circulation: The X-Flow system includes a 200W water pump.
- Compact vertical profile: Designed for smaller spaces and users up to 6'4".
- Indoor/outdoor use: Built with insulated tubing and all-weather components according to RevX.
Bundle Options and Electrical Requirements
- 1.0 HP + WiFi: 110V, maximum draw listed at 9A
- 1.5 HP + WiFi: 110V, maximum draw listed at 11A
- 2.0 HP + WiFi: 220V, maximum draw listed at 8.3A; NEMA 6-30R plug and two-pole 30A breaker
- X-Flow filtration: Two 110V plugs for the water pump and UV, with a combined maximum draw of 3A
- Recommended circuit: RevX recommends a dedicated 15A circuit for the 1.0 or 1.5 HP chiller plus filtration
What’s Included
- Inflatable barrel plunge
- Inflatable lid
- Manual air pump
- Selected 1.0, 1.5, or 2.0 HP water chiller
- X-Flow filtration system

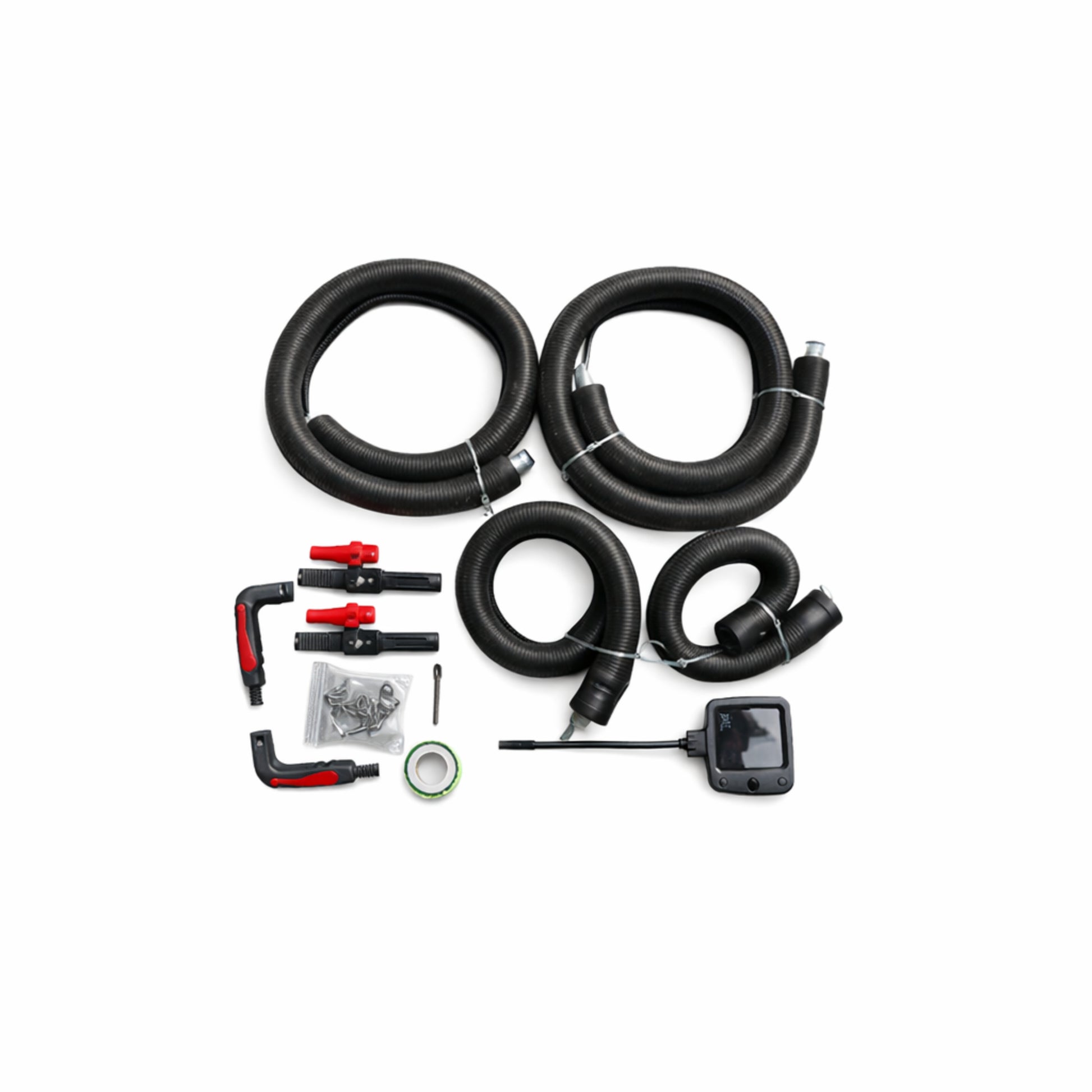

- Insulated tubing and connection kit
- One-year standard warranty for the complete kit
Planning and Setup
The system does not require permanent plumbing; fill it with a garden hose and operate it as a closed loop. RevX estimates about one hour for setup, including filling. Plan for a level surface, drainage, service access, protected electrical outlets, shade where appropriate, and enough room around the separate mechanical components.
Frequently Asked Questions
Which chiller size should I choose?
The correct size depends on ambient heat, sun exposure, desired cooling speed, water volume, insulation, and electrical service. The 2.0 HP option requires 220V power.
Does it include ozone?
The current X-Flow configuration uses UV sanitation and a 20-micron filter. Do not describe it as ozone-equipped unless a different filtration option is selected.
Is plumbing required?
No permanent plumbing is required. The bundle creates a closed loop using included tubing and is filled with a garden hose.
What warranty is included?
A one-year standard warranty is included for the complete kit, with three- and five-year protection-plan options for the chiller.
Cold-water immersion can create significant cardiovascular and breathing stress. Never plunge alone, avoid alcohol or impairment, enter gradually, and consult a qualified healthcare professional before use when appropriate.
